Arandelas Dentadas (DIN 6798)

Especificaciones de las Arandelas dentadas DIN 6798: Arandelas Dentadas DIN 6798

Para tornillos métricos d1 H-13 d2 H-14 d3 ≈ e1 e2 NÚMERO DE DIENTES PESO KG./1000 PIEZAS
A J V A y J V
M-3 3,2 6   0,4   9     0,060
M-3,5 3,7 7   0,5   10     0,110
M-4 4,3 8   0,5   11 8   0,140
M-5 5,3 10   0,6   11 8 14 0,280 0,20
M-6 6,4 11 11 0,7 0,4 12 9 16 0,360 0,30
M-7 7,4 12,5   0,8   14 10   0,500
M-8 8,2 14 14,5 0,8 0,4 14 10 18 0,750 0,50
M-9* 9,4 16   0,9   14 12   0,900
M-10 10,5 18   0,9   16 12 20 1,250 1
M-11* 11,5 19,5   1   16     1,400
M-12 12,5 20,5 26 1 0,5 16 12 26 1,700
M-13* 13,5 22   1   16 12   2
M-14 14,5 24   1   18 14   2,400
M-15* 15,5 25   1,2   18     2,700
M-16 16,5 26   1,2   18     3
M-18 19 30   1,4   18     5
M-19* 20 32   1,4   20     5,500
M-20 21 33   1,4   20     6
M-22 23 36   1,5   20 18   7,500

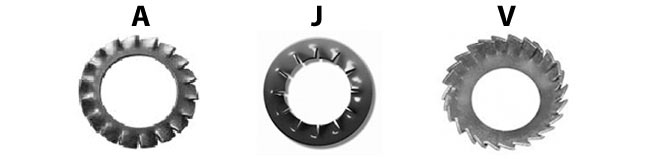

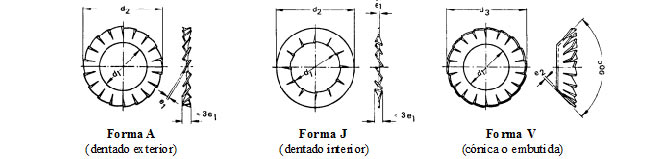

Arandelas Dentadas DIN 6798  - Formas A,J,V
