Cadenas de Paso Largo

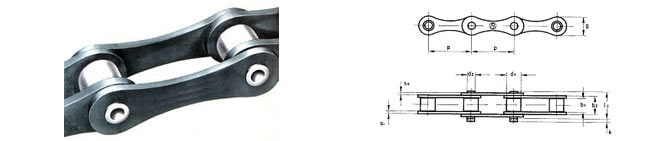

Especificaciones de las Cadenas de paso largoCadenas de paso largo



Estándar Europeo Standard Europeo

DIN ISO A & S p x b1 p b1 d1 g sa d2 l 1 k Fbmin [N] q   [kg/m]
208 B 1603-L 1"  x  1' 5/16" 25,40 7,75 8,51 11,80 1,50 1,50 4,45 17,00 3,90 18200 0,44
208 B 1603-LGF* 1"  x  1' 5/16" 25,40 7,75 8,51 11,80 1,50 1,50 4,45 17,00 3,90 18200 0,45
210 B 1623-L 1' 1/4" x 3/8" 31,75 9,65 10,16 14,70 1,50 1,50 5,08 19,60 4,10 22700 0,56
210 B 1623-LGF* 1' 1/4" x 3/8" 31,75 9,65 10,16 14,70 1,50 1,50 5,08 19,60 4,10 22700 0,73
212 B 1642-L 1' 1/2" x 7/16" 38,10 11,68 12,07 16,10 1,76 1,76 5,72 22,70 4,60 29500 0,73
212 B 1642-LGF* 1' 1/2" x 7/16" 38,10 11,68 12,07 16,10 1,76 1,76 5,72 22,70 4,60 29500 0,76
216 B 1666-L 2"   x  0,67" 50,80 17,02 15,88 21,00 3,70 3,00 8,28 36,10 5,40 60000 1,71
216 B 1666-LGF* 2"   x  0,67" 50,80 17,02 15,88 21,00 3,70 3,00 8,28 36,10 5,40 60000 1,98
220 B 1682-L 2' 1/2" x 3/4" 63,50 19,56 19,05 22,80 4,40 4,00 10,19 43,20 6,10 95000 2,00
220 B 1682-LGF* 2' 1/2" x 3/4" 63,50 19,56 19,05 26,40 4,40 4,10 10,19 43,20 6,10 95000 2,40
224 B 1702-L 3"  x  1" 76,20 25,40 25,40 33,40 5,40 5,00 14,63 53,40 6,60 160000 4,93



* → A&S: Placas rectas



Estándar Americano Standard Americano

DIN ISO A & S p x b1 p b1 d1 g sa d2 l 1 k Fbmin [N] q   [kg/m]
208 A C 2040 1"  x  5/16" 25,40 7,85 7,95 12,00 1,50 1,50 3,96 17,80 3,90 14100 0,40
208 A C 2040* 1"  x  5/16" 25,40 7,85 7,95 12,00 1,50 1,50 3,96 17,80 3,90 16900 0,50
210 A C 2050 1' 1/4" x 3/8" 31,75 9,40 10,16 15,00 2,00 2,00 5,08 21,80 4,10 27800 0,69
210 A C 2050* 1' 1/4" x 3/8" 31,75 9,40 10,16 15,00 2,00 2,00 5,08 21,80 4,10 27800 0,84
212 A C 2060 1' 1/2" x 1/2" 38,10 12,57 11,91 18,00 2,40 2,40 5,94 26,90 4,60 38000 1,02
212 A C 2060* 1' 1/2" x 1/2" 38,10 12,57 11,91 18,00 3,17 3,17 5,94 28,60 4,60 38000 1,44
216 A C 2080 2"  x  5/8" 50,80 15,75 15,88 24,10 3,00 3,00 7,92 33,50 5,40 56700 1,76
216 A C 2080* 2"  x  5/8" 50,80 15,75 15,88 24,10 4,00 4,00 7,92 35,80 5,40 65000 2,42

* → A&S: Placas rectas



Eslabones de conexión:
Eslabones de conexión para Cadenas de Paso Largo
